Ceramill Map 600 AmannGirrbach

From AmannGirrbach Ceramill Map 600

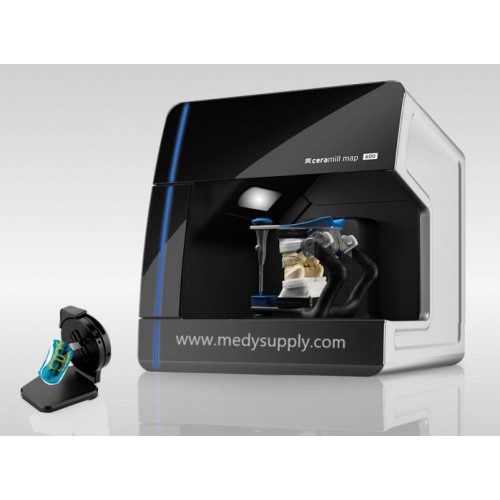

The High Technology from Amann Girrbach Ceramill Map 600 is a fully automated high-performance dental scanner known for its 4 μm precision and rapid 3-axis scanning technology. It is specifically designed to support complex dental laboratory workflows, including full jaw scans and open articulator scanning.


And with Technical Specifications
According to manufacturer and distributor data from US Dental Depot and Amann Girrbach, the key technical specs for the Amann Girrbach Ceramill Map 600 (and its updated Ceramill Map 600+ version) include:
Accuracy: 4 μm (standard) and 10 μm for implant bars.
Scanning Speed: Full jaw scan in 18 seconds; overview scan in 4 seconds; single die in 4.5 seconds.
Sensor Technology: Ultra HD industrial camera with 3D sensor and Blue Light technology.
Axes: 3-axis drive technology with an automatic Z-axis for intelligent scan height control.
Output Formats: Open STL or PLY data.
Dimensions: 415 x 424 x 469 mm (D/W/H).
Weight: 25 kg (approx. 55 lbs).
Electrical: 100-240V, 50/60Hz; Power Output of 60W.


More Features & Description For You

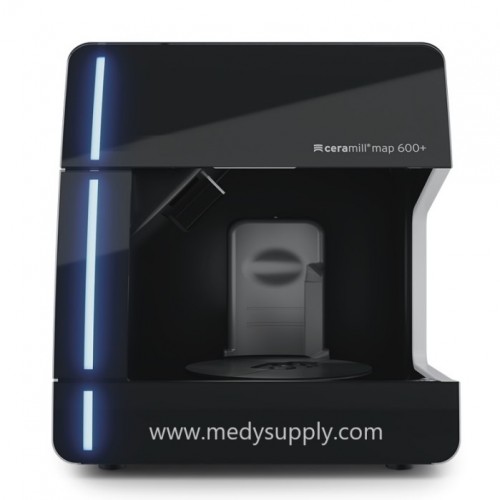

The style Open Housing Design: Features an "open housing" concept that provides easy access to the functional area while shading from stray light and allowing for simple cleaning.
Intelligent Scan Height Control: Automatically moves the object into the best possible scan area, reducing user error and increasing process reliability.

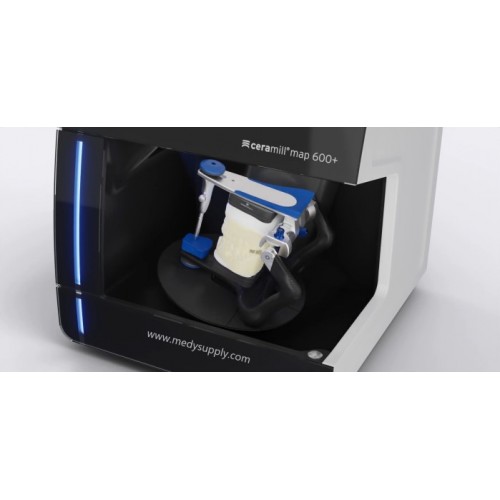

Universal Articulator Support: Includes an integrated universal carrier plate that supports all common articulator types, eliminating the need for frequent plate changes.
Splitex Integration: Compatible with all accessory components from the Map portfolio.
Workflow Versatility: Supports scanning for single crowns, complex bridge constructions, full dentures, and impressions
