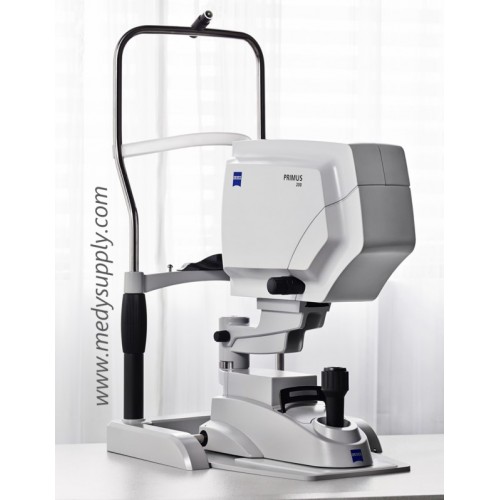

ZEISS PRIMUS 200

From ZEISS PRIMUS 200

With High-Tech ZEISS PRIMUS 200 is a Spectral Domain OCT (SD-OCT) designed for fast, 3-step, high-definition (HD) retinal, glaucoma, and anterior segment imaging. It features 840 nm SLD, 5±1 μm axial resolution (in tissue), and built-in Auto FoveaFinder™. The compact system includes a 23-inch screen, 500GB storage, and supports DICOM, making it ideal for efficient, high-throughput eye care practices

Specifications
Imaging Technology: Spectral Domain OCT (SD-OCT).
Optical Source: Super Luminescent Diode (SLD), 840 nm.
Axial Resolution: 5±1 μm (in tissue).
Transverse Resolution : 20 μm (in tissue, FWHM).
A-scan Depth : 2.0 mm, 1024 points.
Fundus Imaging : Confocal Scanning Laser Ophthalmoscopy (cSLO).
Fixation : Internal, External.
System Weight/Dimensions : 40 kg (88 lbs), 120L x 80W x 150H (cm)

Analysis Capabilities
Retina : Macular thickness maps, 5-line raster, 1-line HD scans, and Auto FoveaFinder
Glaucoma : ONH (Optic Nerve Head) and RNFL (Retinal Nerve Fiber Layer) analysis, AutoCenter
Anterior Segment : Corneal thickness (CCT) and angle views.
Workflow : 3-step, automated, with on-board pathology library.

Computer & Connectivity
Operating System : Windows 7/Intel Core i3-2330E (some models feature i5-6500).
Storage : 500GB, 2.5-inch hard drive.
Display : 23” (1366 x 768 resolution).
Data Transfer: 4 USB ports, 2 Ethernet ports (10/100).
Compatibility: DICOM compliant
