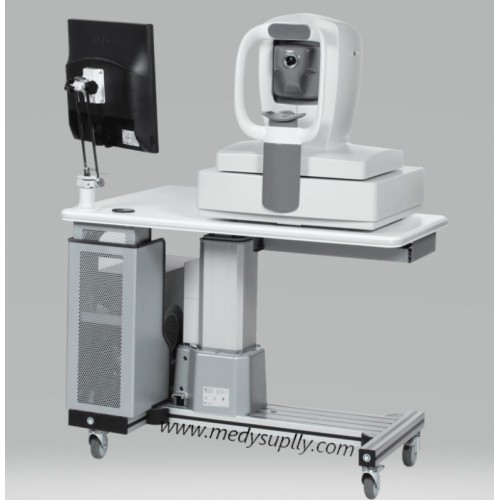

Optovue Avanti Widefield OCT

From Avanti Widefield

Enjoy your experience with high-tech advanced retinal imaging with the Visionix Optovue Avanti Widefield OCT. This cutting-edge device offers comprehensive views from cornea to choroid, enabling precise diagnosis and management of ocular diseases. With high-definition imaging, 3D visualization, and AngioVue technology, it provides detailed insights into retinal vascular health. Features like ANGIOVUE HD AUTOMATIC MONTAGE and ANGIOVUE PROJECTION ARTIFACT REMOVAL ensure exceptional image quality and accuracy. Combined with DualTrac Motion Correction and Angioanalytics, it offers unparalleled precision for evaluating retinal structures and circulation. Revolutionize your eye care practice with the Avanti Widefield OCT.
The Optovue Avanti Widefield OCT offers you new information on structures outside the conventional 6×6 mm block, separates the retina into distinct layers for detailed assessment, offers views of the vitreous and deep choroid, and gives you the capability to monitor change over time. And scan patients faster with 70,000 A-scans per second, fast procedure scans with Avanti’s desktop processing engine, and quickly identify potential problems with comprehensive, easy-to-read reports.

High-Tech Optovue Avanti also supplies an all-in-one alternative for posterior and lateral high heeled OCT imaging at 70,000 A-scans each second, using widefield 3D motion correction and 3-micron electronic resolution. Along with fast and accurate imaging, Avanti offers a simultaneous multi-layered evaluation of peripheral cornea pathology; deep choroidal imaging; fovea location recognition; pachymetry mapping; and optic disc, RNFL and ganglion cell complicated evaluation.

Features
Visualize Peripheral Pathology with Avanti's 3D Widefield Cube
Assess of Change Over Time with RNFL and GCC Trend Analysis
Precisely Calculate IOL Power in Your Post-Refractive Surgery Patients with Total Cornea Power
Increase Your Productivity with High-Speed Scanning and Easy-to-Use Reports
Nerve Fiber Layer and Ganglion Cell scans to screen for glaucoma and follow patients over time
Retinal macular scans to diagnose and support numerous medical eye problems including macular degeneration, diabetic macular edema, epiretinal membrane, vitreomacular traction, cystoid macular edema, etc
Anterior Segment scans to diagnose corneal or iris pathology
OCT Angiography which is starting to be used more than traditional fluorescein angiography to image the blood vessels of the retina and optic nerve.  It is particularly helpful imaging patients with diabetes, macular degeneration, retinal vein occlusion, and glaucoma
Measurement of Total Corneal Power (TCP) for calculation of Intraocular Lens (IOL) power after LASIK, PRK or RK which has been shown in studies to be the most accurate technology available
Evaluation of the anterior chamber angle to determine the risk of acute angle closure glaucoma
Corneal thickness mapping to judge central corneal thickness and screen for keratoconus
Imaging of intraocular tumors such as a choroidal nevus or choroidal melanoma

Optovue High Technology
The Avanti embodies many of the “Firsts” in SD-OCT development that Optovue has introduced to eye care, including the first FDA Cleared SD-OCT, 2-phase Noise Reduction, Mode switching to image the inner retina or the deep choroid, Choroid imaging and measurement, Anterior Segment imaging and measurement, GCC with FLV and GLV, Enface Analysis of 3D data, Pachymetry Mapping, Total Cornea Power measurement and more. The Avanti SD-OCT allows eye care practitioners at all levels to offer the most current technology, and stay ahead of clinical challenges with confidence. The forward thinking development encompassed in the Avanti also provides clinicians with the basis to move to the next level in clinical OCT utility… functional OCT.

Advantage
The Avanti Widefield Enface OCT system is the next generation in OCT technology with a fully comprehensive system for managing retina, glaucoma, and anterior segment.  Avanti offers Widefield scanning, a 12mm x 9 mm scan with 40° imaging, high speed – 70,000 A-scans/seconds and an easy user interface. The Avanti also incorporates  Total Corneal Power (TCP) for post-refractive cataract patients and Epithelial Thickness Mapping (ETM) for better LASIK planning.

Glaucoma and Retina
Optovue Avanti Widefield OCT incorporates RNFL and Ganglion Cell Complex (GCC) measurements with the added parameters of Focal Loss Volume (FLV%) and Global Loss Volume (GLV%) that increase the sensitivity and specificity of the GCC analysis.1 The RNFL and GCC trend analysis report provides a tool for approximating the rate of change that enables personalized treatment protocols and improved patient education.
The Avanti gives Retina Specialists new information on structures outside the traditional 6mm x 6mm cube, providing an assessment of individual layers of the retina, offering views of the vitreous and deep choroid, and enabling evaluation of change over time. Optovue Avanti Widefield OCT incorporates some technologies that deliver clinical and practical benefits.

Anterior
For the Anterior Segment, the Avanti expands the clinical utility of your OCT to address a broad range of patients in practice. This comprehensive package includes exciting new technology as well as the standard features you’ve come to expect from anterior segment OCT. Avanti Widefield OCT offers a new way to calculate IOL powers and to assess the thickness of the epithelium, while also providing essential functions such as cornea cross-line scans, angle measurement, and pachymetry. Avanti Widefield OCT offers a new way to calculate IOL powers and to assess the thickness of the  epithelium, while also providing essential functions such as cornea cross-line scans, angle measurement, and pachymetry.

Standard in OCT Imaging

70,000 A-scans/second
Widefield 3D OCT Imaging (12mm x 9mm)
320×320 3D cube
28μm B-scan spacing
SMART™ motion correction processing
3mm scanning window depth
Enhanced HD Vitreous & Choroidal imaging
SharpVue™ processing
VTRAC Real-time tracking
Deep Choroidal Imaging (DCI)
Fovea Location Recognition (FLR)
TREND analysis for Nerve Fiber & Central Macula
Pachymetry map of cornea (6mm)
Total Cornea Power (TCP)
Epithelium Thickness Map* (ETM™) of cornea (6mm)

Include equipped
12 Month Warranty
Lenses: CAM-L, TCP Validation, TCP Acceptance
Upgraded Feature: Cornea Power
Angiovue
Dust Cover
ComputerCPU: i7, 3.2 GHz, Windows 7® 64 bit
RAM: 16 GB
Hard Disk: 2 TB
Back-Up Hard Disk: 2 TB
