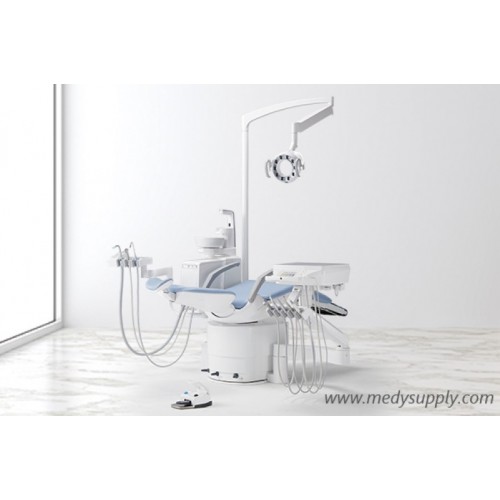

Takara Belmont EURUS S6 Dental Chair Fully Equipped

From Takara Belmont EURUS S6 Dental Chair

The Belmont Eurus S6 is a high-end dental treatment center featuring a folding legrest, designed for superior patient access (6 o'clock position) and small footprints. Key specs include a 165kg (363 lbs) load capacity, hydraulic chair movements, a 90° rotating spittoon, and a touch-screen controlled, below-the-patient delivery system

Comfortable positioning also allows for easy cleaning and maintenance of the unit.

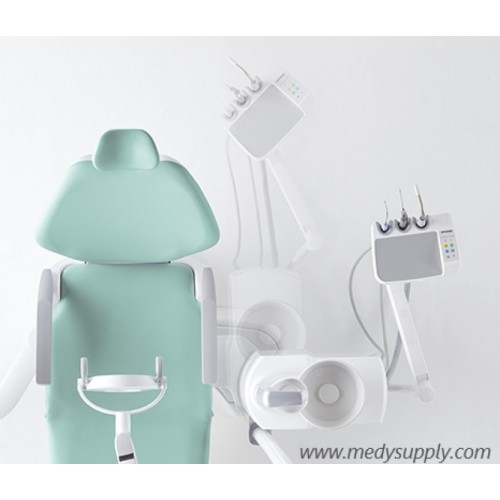

The rotating function of the spittoon bowl ensures convenient access for every patient

The cuspidor rotates 90° outwards, making it possible for assistants to stand at the 3 or 4 o'clock position. This allows for convenient access to support the dentist during a wide range of treatments.

With an air braking system, the balance arm enhances mobility and flexibility during dental procedures

The advanced hydraulic chair mechanism ensures the smooth, quiet and efficient movement of every chair function. The chair is easily controlled with the dentist's or dental assistant's foot for hands-free, hygienic operation.

The table is held by a flexible arm which delivers a vertical range motion of 770mm to 900mm.

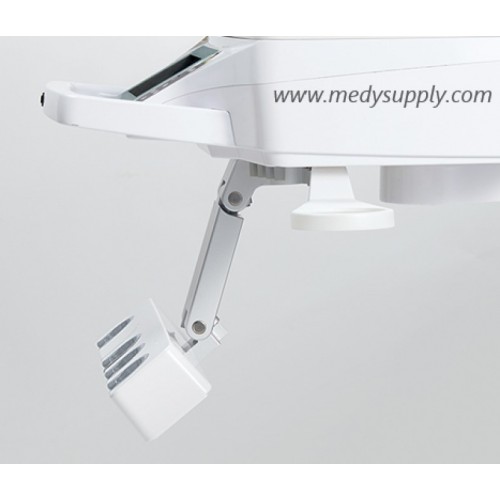

Designed to be independent of the table, the instrument holder can be freely adjusted via a three-axis adjustment mechanism to achieve the best working position for the dentist.

The only smooth one, frictionless motion of the roller frees the dentist and dental assistant from the weight of the hose when drawing out dental instruments.

Designed to improve efficiency and reduce stress during treatments, the screen only displays necessary information when a handpiece is selected and picked up.

A new slide foot controller allows for precision adjustment via sideways position motions and step-on activation. Maximum RPM can be set for the handpiece quickly and intuitively.

High-Tech Great accessibility

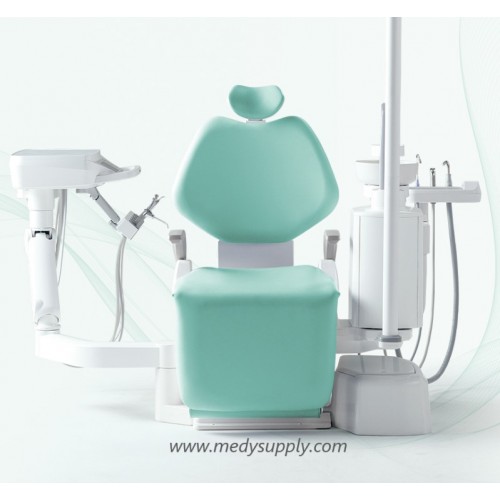

With high tech make it the chair in the zero position, leg-rest in, armrest folded down and doctor table in the preparation position the entry and exit zone completely opens-up at the front and side of the chair enabling very easy access for all patients, especially children, elderly and infirm.

Positioning the doctor table, instruments and assistants tray discreetly out of view behind the chair backrest eases any patient anxiety as they enter the surgery.

This unique Belmont Eurus S6 combination benefits dentist, assistant and patient alike.

Enjoy The Smoothiest

TheProduct of Takara Belmont Eurus S6 benefits from an extremely quiet hydraulic chair system, with smooth movement ensuring complete patient comfort while being positioned for treatment.

The Belmont Eurus S6 treatment centre exudes refinement and brings the next level of ultrasoft comfort, quality, innovation and style to contemporary dentistry.

Design

Simple design and super efficient design offers total accessibility for both patient and operator alike, allowing effortless working positions alongside discreet clean and preparation zones.

The contemporary Eurus S6 has our renowned below-the-patient swing-arm delivery system, powerful intuitive touch-screen with advanced instrument control and integrated WaveOne technology as a factory built-in option.

Doctor table positioning

The height and positioning adjustable balance arm the doctor table can be presented at the required height and by the press of a button can be adjusted with ease, lifting or lowering, then simply releasing the brake button to lock into position. The swing around arm presents the doctor table in numerous positions with ease, facing forward for working in front of the patient, or around the side from the 9 to 1 o’clock positions for a range of procedures with effortless movement, reducing fatigue for the operator. The handpiece holder is also totally independent from the table and can be freely adjusted across three axes.

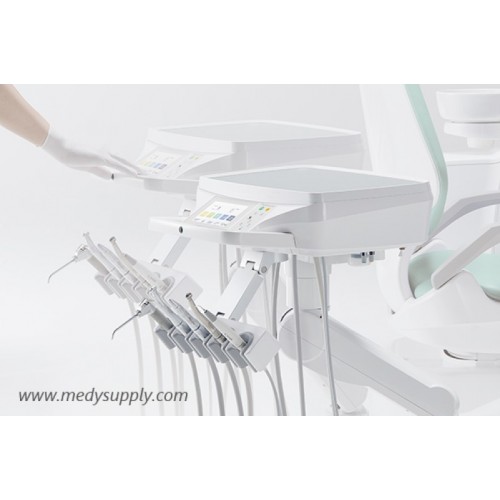

Innovative Smart Touch-Screen

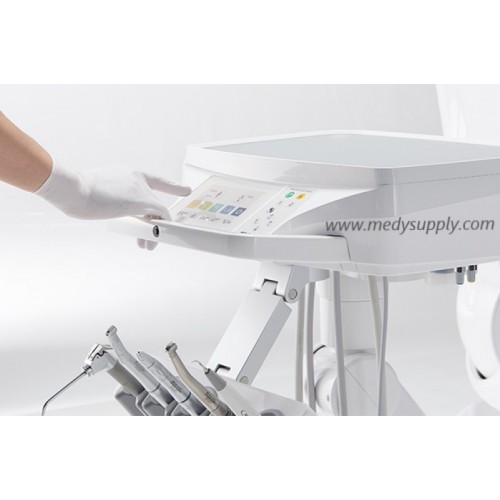

The smart touch-screen offers one-touch control across a wide range of functions, with an easy-to-read display that tells you everything at a glance, including motor settings and torque. You can pre-programme settings and also restore to standard settings in just one touch.

The new touchpad can control the micro motor speed, torque, and rotation direction with preprogramed settings. It can also control the turbine speed with more variation by using the foot pedal, and has a speed limit setting.

For the scaler, there are endo, perio and scaling control settings.

A chair locked indicator adds peace of mind for when an instrument is being operated.

Other features include a bowl flush, cup filler, spray air, and water spray on/off switches.

Access Bien-Air WaveOne Technology

The Eurus S6 comes with built-in WaveOne technology.

Thanks to Bien-Air preparation we can now offer the WaveOne single-file reciprocating system to shape the root canal completely from start to finish. This comprehensive endodontic system brings a new standard of dental care. 4 x safer and almost 3 x faster than using multiple files, this unique, unequal bidirectional reciprocation movement enables the file to rotate 150° counter clock wise, followed by a 30° clockwise rotation.l and integrated WaveOne technology as a factory built-in option.

Features

Flagship treatment centre exudes refinement and is designed for superior hygiene control.

Offers total accessibility for both patient and operator alike.

Discreet positioning of doctor table, instruments and assistant tray.

Maximum safe working patient weight of 165kg

More Specifications

Chair & Patient Access : Folding legrest allows for easy patient entry/exit, suitable for elderly/wheelchair users.

Delivery System : Below-the-patient swing-arm (holder or rod type) allows the doctor table to be positioned behind the chair, reducing patient anxiety.

Weight Capacity : Maximum safe working patient weight is 165kg (363 lbs).

Control & Technology : Touch-screen display controls motor speed, torque, and endodontic functions (optional WaveOne integration).

Lighting : 10-LED light with a touchless sensor and variable intensity.

Hygiene & Safety : Autoclavable handpiece holders/tray mats, waterline flushing, and safety cut-out switches on the chair base and assistant arm.

Optional Configurations : Available as a standard S6 with a cuspidor or as a Vac-Pac System (no cuspidor) for smaller spaces
